neoOBD2
Open Platform OBD Interface for Automotive Enterprise IoT![neoOBD2-Feature-Image](https://i0.wp.com/www.intrepidcs.com.cn/wp-content/uploads/2021/12/neoOBD2-Feature-Image.png?resize=1080%2C406&ssl=1)

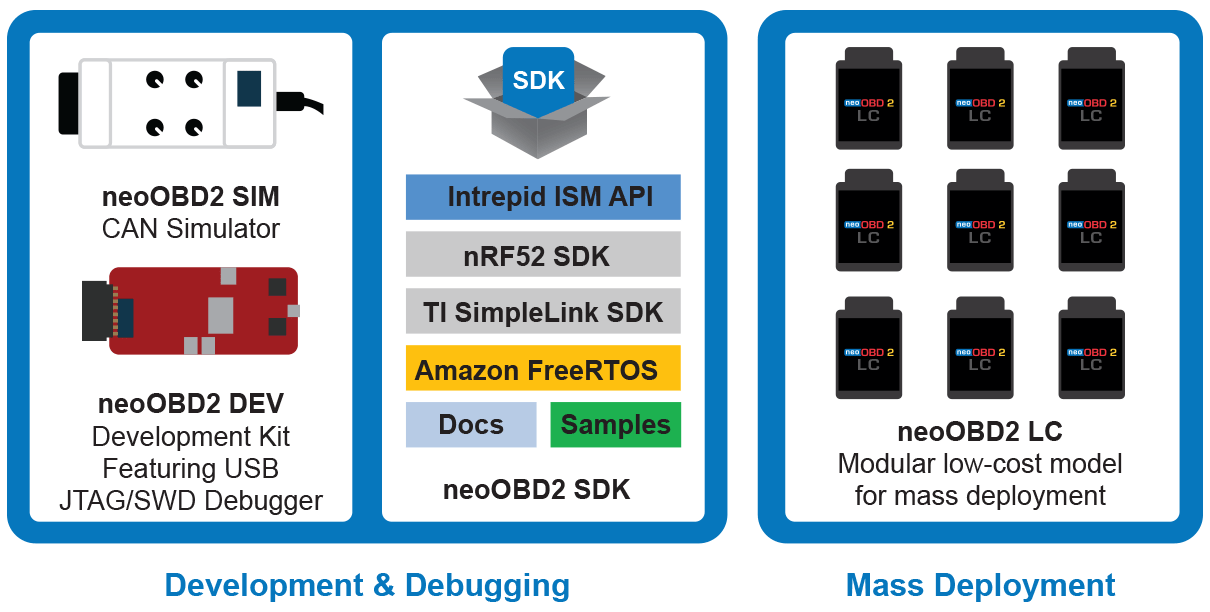

The neoOBD2 family of products provides a full hardware and software tool set you can use to build and deploy vehicle network IoT adapter that is customized to your exact requirements. Intrepid provides a unique model that spans the life cycle of an automotive IoT product from the initial software protoyping & development phase to the mass deployment & maintenance phase.
neoOBD2 DEV (prototyping & development): Full-featured neoOBD2 hardware in development board form-factor. Contains onboard USB-JTAG/SWD debug probes for debugging and programming the ARM Cortex M4 Wi-Fi.
neoOBD2 LC (mass deployment): Modular mass deployment device in OBDII dongle form-factor, absent onboard debug probes.
neoOBD2 SDK: Published SDk available on GitHub with sample projects and documentations for building Wi-Fi enabled connected vehicle applications for the ARM Cortex M4 applications processor on the TI CC3235SF Wi-Fi MCU, using the Intrepid Secure Module (ISM) vehicle network API.
![neoOBD2_Dev_Debug_MassDep_2](https://i0.wp.com/www.intrepidcs.com.cn/wp-content/uploads/2021/12/neoOBD2_Dev_Debug_MassDep_2.png?resize=1080%2C546&ssl=1)
![neoOBDLC_DeveloperBoard_11272019](https://i0.wp.com/www.intrepidcs.com.cn/wp-content/uploads/2021/12/neoOBDLC_DeveloperBoard_11272019.png?resize=1080%2C1098&ssl=1)
neoOBD2 DEV is a versatile development board for building connected applications for CAN, CANFD, LIN, and KLINE networks using Wi-Fi and LTE-M1 / NB1 cellular modem with built-in GPS.
neoOBD2 DEV is fully-featured with 4x CAN/CANFD, 1x SWCAN, 1x LIN/KLINE, onboard USB to JTAG/SWD debug probes for ARM Cortex M4 on Wi-Fi and BLE SoCs, LTE-M1 / NB1 LPWAN cellular modem wtih built-in GPS, 9-axis IMU, RTC, Secure Crypto Element (ATECC608A), and more.
The neoOBD2 LC is a modular mass-deployment model of neoOBD2, allowing custom ARM Cortex M4 applications you have built for the Wi-Fi, and LTE-M1/NB1 using the neoOBD2 DEV with CAN, CANFD, LIN, and KLINE connectivity to be deployed securely in mass scale. The neoOBD2 LC features a modular design. You can customize the number and type of vehicle networks, wireless connectivity, and other hardware features based on your specific requirements to achieve opitmal capability and cost-savings.
![neoOBDLC_Front_11272019](https://i0.wp.com/www.intrepidcs.com.cn/wp-content/uploads/2021/12/neoOBDLC_Front_11272019.jpg?resize=1080%2C892&ssl=1)
![neoOBD-SIM](https://i0.wp.com/www.intrepidcs.com.cn/wp-content/uploads/2018/06/LED-top.jpg?resize=900%2C900&ssl=1)

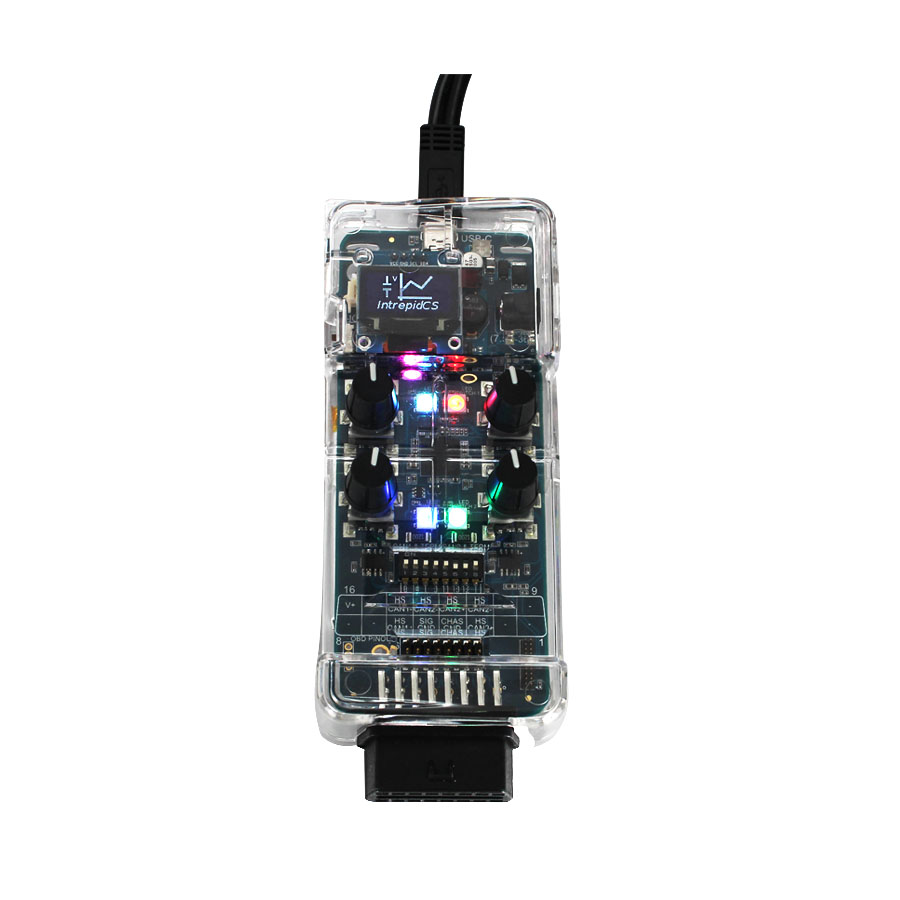

The neoOBD2-SIM includes two CAN / CAN FD channels and is designed for complex script-based simulations for interactive protocols such as ISO 14229, CCP/XCP, J1939 and more.
neoOBD2 SDK
Published SDk available on GitHub with sample projects and documentations for building Wi-Fi connected vehicle applications for the ARM Cortex M4 applications processor on the TI CC3235SF Wi-Fi MCU and Nordic nRF52840 SoC, using the Intrepid Secure Module (ISM) vehicle network API.
![neoOBD2-PRO-words](https://i0.wp.com/www.intrepidcs.com.cn/wp-content/uploads/2021/12/neoOBD2-PRO-words.png?resize=163%2C85&ssl=1)
